For more than 60 years, Heyl & Patterson has been a leader in the stacker reclaimer industry. Located in Canonsburg, PA, H&P customizes stacker reclaimers according to each specific customer’s request including site capacity, yard limitations, and environmental conditions.
H&P’s light to medium duty stacker reclaimers range between 2,000 – 4,000 tons per hour, capable of handling any materials from coal to iron ore pellets and are located in the most rugged environments. Typical boom lengths range from 50 to 200 feet from boom pivot.
What are stacker reclaimers?

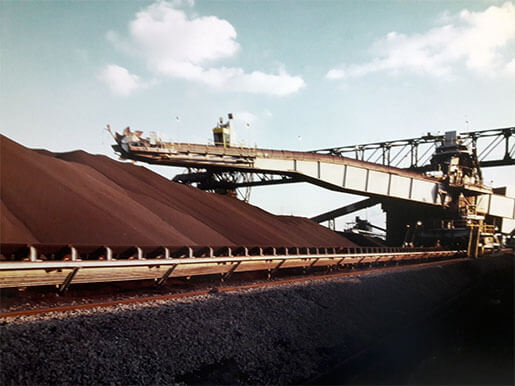

A heavy-duty stacker reclaimer from Heyl & Patterson handles material ranging from coal to iron ore pellets found in steel mills, coal yards, and transfer stations, primarily functioning for stacking and reclaiming materials.
Stacker reclaimer machines typically have a boom that is capable of reaching over the top of the stack of materials used for reclamation and a bucket or claw that can grab the material and stack it.
Types of Stacker Reclaimers
There are two types of stacker reclaimers: bridge type and bucket-wheel.
Bridge-type stacker reclaimers have a bridge that spans the width of the stack. They are used for stacking and reclaiming material in a single row or stack.
Bucket-wheel stacker reclaimers, on the other hand, have a bucket wheel that spins around a central axis, intended for stacking and reclaiming material in multiple rows or stacks.
Stacker Reclaimers are common in various industries, such as mining, power generation, and port operations. They are typically used to stack material on one side of a stockpile and reclaim it from the other side.
Advantages Of Stacker Reclaimers
Stacker reclaimers are applicable for bulk material handling applications. Materials such as coal, ores, and grains can be stacked and then reclaimed (or retrieved) from stockpiles by stacker reclaimers.
Using stacker reclaimers offers significant advantages for different industries.
- Efficient stacking of materials
- Retrieve materials from stockpiles
- Reduces overall cost
- Improves safety
Stacker Reclaimers of H&P
Heyl & Patterson designs and utilizes a wheel-supported slewing system assembly instead of compact hard-to-access slew bearings. Our slew design allows for ease of inspection access during routine preventative maintenance.
H&P also offers a unique collapsible tripper design that simplifies design parameters versus a traditional tripper and minimizes material transfer chute as material flows through the stackers/reclaimers.
To help with your business operations, H&P offers a variety of stacker reclaimers:

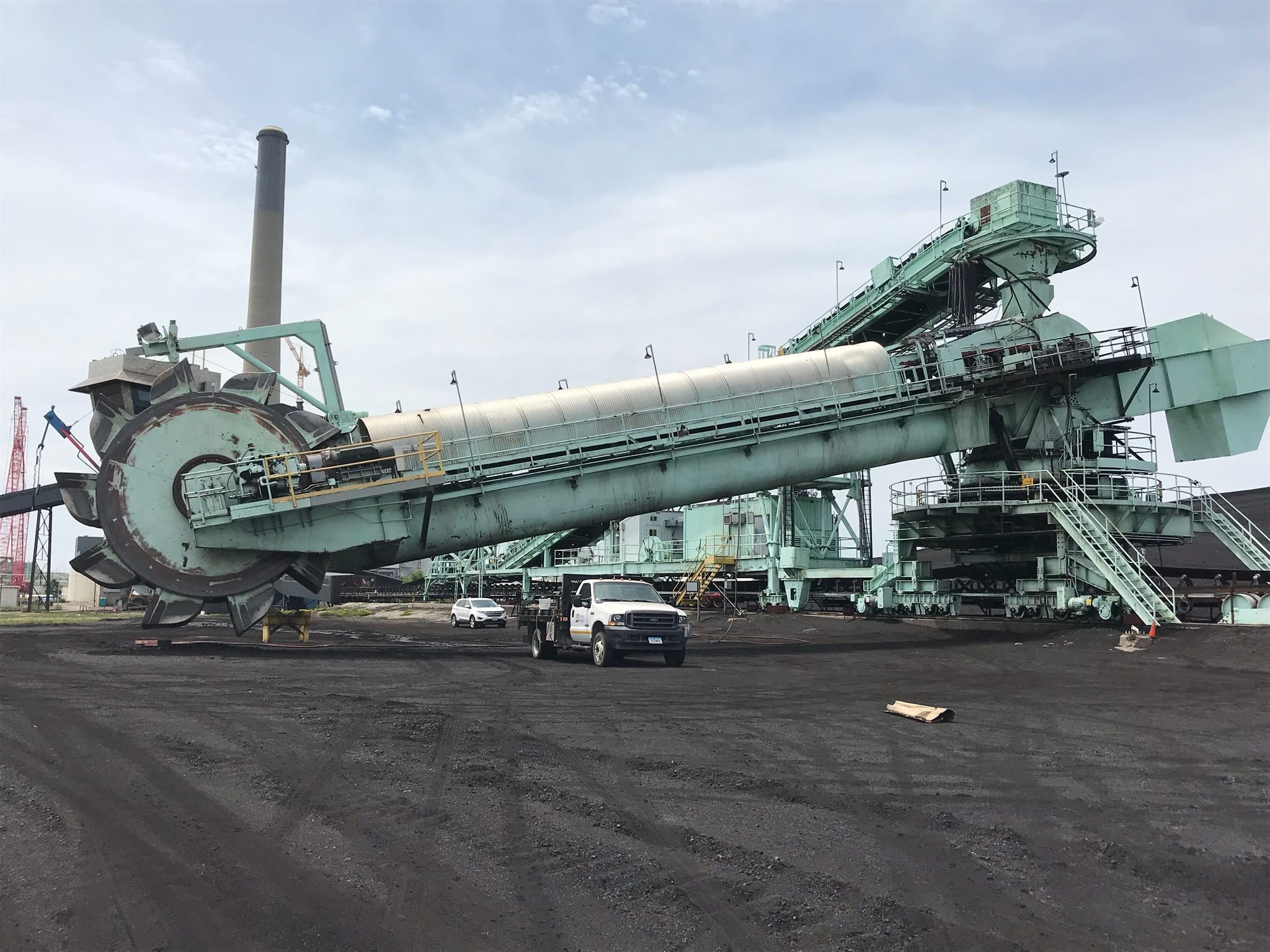

Boom Pivot Stacker Reclaimer
The piece of equipment functions to stockpile and reclaim material through luffing and slewing movements. With this stacker reclaimer, you can stack/reclaim materials on both sides of the feed conveyor, tailored specifically for stacking or reclaiming.

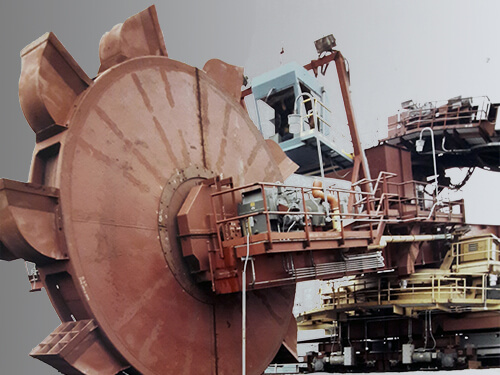

Trencher Stacker/Reclaimer
A Stockpile and reclaim unit designed for material storage and reclaim within limited yard capacities, instead of slewing, this machine stocks and reclaims material by traveling.

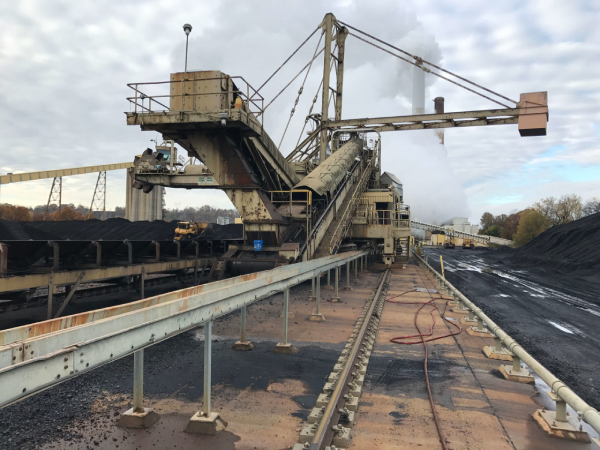

Mast Supported Stacker/Reclaimer
Compared to Trencher Stacker/Reclaimer, this unit stockpiles and reclaims materials with slewing movements. It stacks and reclaims material on both sides of the feed conveyor, similar to a Boom Pivot Stacker Reclaimer. Stacking or reclaiming systems can be customized to suit your needs.
Dependable, high-performance stacker reclaimers for any size operation
Compared to Trencher Stacker/Reclaimer, this unit stockpiles and reclaims materials with slewing movements. It stacks and reclaims material on both sides of the feed conveyor, similar to a Boom Pivot Stacker Reclaimer. Stacking or reclaiming systems can be customized to suit your needs.
Dependable, high-performance stacker reclaimers for any size operation
H&P is the right choice if you need any type of stacker reclaimer that is not only efficient but dependable. Our products are in demand worldwide, and we have over 60 years of experience designing and manufacturing stacker reclaimers.
Our system will be specifically tailored to your needs, providing you with an array of models to choose from, whether you need a compact machine for a small operation or a heavy-duty stacker reclaimer for a large-scale operation.
If you are in search of a stacker reclaimer that will meet your needs and exceed your expectations, Heyl & Patterson is just the right fit for you. Contact us today to learn more about our system and we will help you improve your everyday operation!
